aerometerThe measurement principle is a comparative measurement method, which uses the fluidity of the air to convert the change in the geometric size of the measured workpiece into the change in the pressure, so that the user can read the geometric parameters of the measured workpiece on the pressure indicator, which is carried out by the sampling circuitADConvert to obtain an accurate measurement of the inner diameter. Because the gas meter uses the gas as the measuring medium, this measurement method has the characteristics of non-contact measurement.

    Because the gas flow meter is strict to the cleanliness of the gas path, temperature and humidity and other conditions, the user needs to calibrate regularly during the measurement process. The system is equipped with a standard ring gauge in the measuring station, in order to ensure the accuracy of the measurement, in the actual use of each test200Each product should be calibrated once. At the same time, in order to solve the problem of the influence of the taper inside the product, each product is measured once in three different inner hole heights during the measurement process to make a comprehensive judgment.

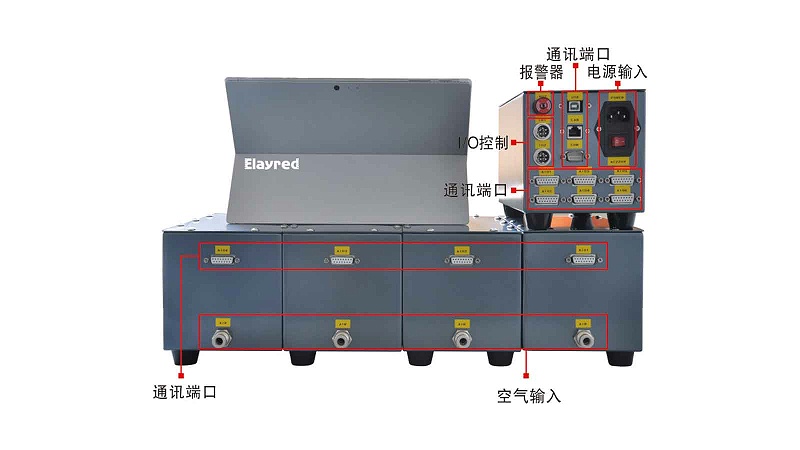

    aerometertheADThe conversion program is loaded inPLCOn the system, with the system of electric, pneumatic, sensorsIOEqual sharePLCThe measured value passesRS-485Bus transmission to the vision system usedPCSystem to perform overall statistical analysis of the data. The pneumatic gauge can measure the inner diameter with micrometer accuracy.

    Yileride focuses on precision parts size pneumatic measurement, as a national high-tech enterprise and private science and technology enterprises in Jiangsu Province, has12Human technology research and development team, research and development personnel have participated in the United States Group, Gree, Mitsubishi, Panasonic and other companies of automatic measuring machine research and development, the company's annual research and development investment200Million, research and development of new products is not less than15A, if you're right aerometerInterested or want to know more details, please click on our online customer service for consultation, or directly call the national unified service hotline 400-682-7787. We look forward to your call!
