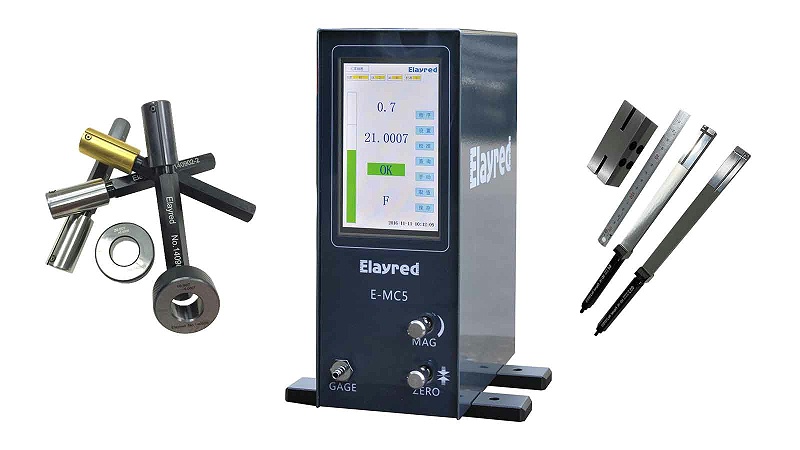

aerometerWith all kinds of probes and measuring devices, it can be realizedInner and outer diameter, depth, thickness, slot width, hole distance, roundness, taper, coaxiality, straightness, flatness, parallelism, verticality, ventilation and sealingAnd other item parameter measurement. Well,aerometerHow are these parameters measured?

    1, inside diameter and outside diameter
    aerometerIt is often used to measure the size or shape of the inside diameter of the hole and the outside diameter of the circle of the workpiece. Two-nozzle pneumatic probe - Having two opposite nozzle holes, it is often used to measure the inner diameter of the hole, and the two-nozzle pneumatic plug rule is mainly used to measure the outer diameter.
    2straightness
    aerometerAnother common place is for dynamic measurement of the straightness or curvature of the hole, in this measurement, a special pneumatic probe can easily and quickly measure the straightness of the workpiece to be measured.
    3, flatness
    Flatness is measured by moving the workpiece flat against a fixed surface with an air nozzle. This measure of flatness is fast, convenient, simple and accurate.
    4, average value
    A measuring tool with multiple nozzles evenly distributed on a circular surface can measure the average value for the user. This measuring tool is mainly used for thin-walled components or special round surface components. Four, six or more nozzles can be used, the number of nozzles will depend on the size of the measuring tool.
    5, perpendicularity
    The verticality of a workpiece, such as measuring the verticality of a hole with respect to a surface, can be determined by moving a hole with"ZThe pneumatic probe of the shaped nozzle measures the change in verticality according to the change in back pressure.
    6, slot width
    The thin probe makes it easy to measure the size of the groove, aerometerNot only the width of the groove can be measured, but also the parallelism of the two sides of the measured groove can be measured.
    7, special round surface
    aerometerCan measure the roundness of the workpiece. For the case that the two points are not round, a commonly used two-nozzle pneumatic probe is OK, if it is an odd circle, the number of nozzles must be increased according to the number of odd circles.
    8, taper
    The taper can be changed by means of two special probes with different nozzle surface diameters aerometerEasily measured.
    9, fit tolerance
    For two parts with tolerance fit requirements, the amplifier can display the hole size value, the shaft size value, and the gap value between the two components, and the operator only needs to read the gap value to determine whether the two components have the required fit size.
