1-1outline

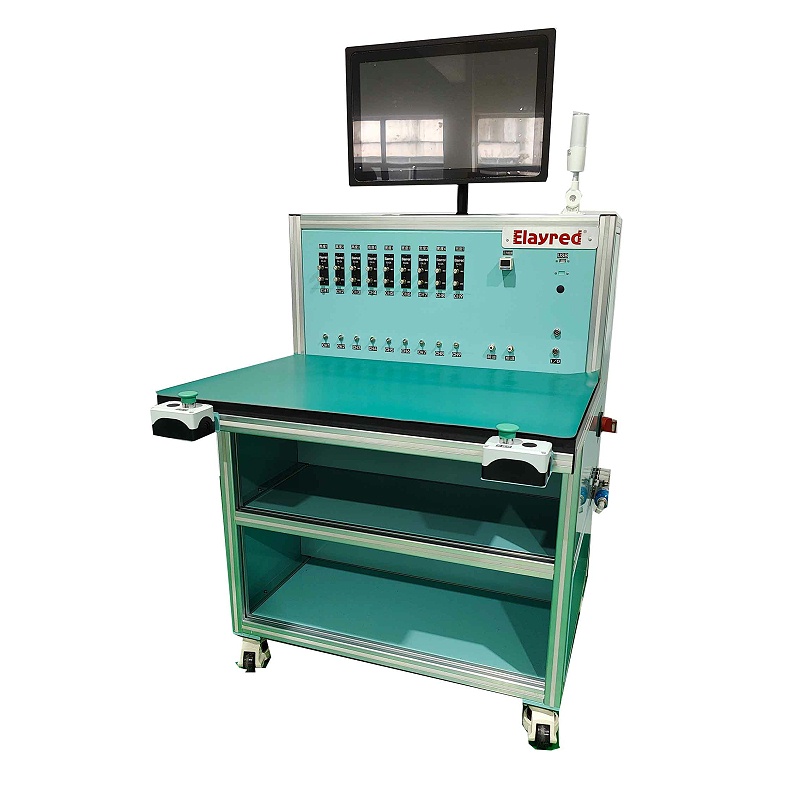

    This machine is a pneumatic measuring device to determine the internal cylinder of the compressor, the control screen shows the cylinder height, slot width of the measurement results, and according to the measurement results select qualified parts of the measuring machine. At the same time, the machine is connected with the rotor cutting frame and the slide spreader, and the rotor and slide are automatically selected according to the measurement results of cylinder height and slot width.
    1-2specification
    １Determination of cylinder height
    a)Determination using gas-electric converter4The height of each part.
    b)By determining the minimum value, the level is setOK,±NGIn the decision level.
    If so1If the measured result of each part is outside the tolerance, it is determined that the workpiece isNG.
    ２Determination of cylinder height parallelism
    a)pass4In the height of each part｜Maximum value－Minimum value｜Measure parallelism.
    b)OK,NGThe decision of...
    ３Measurement of slot width
    a)Determination using gas-electric converter5The width of each part.
    b)In the software (the width series distribution can be arbitrarily set), by determining the minimum value, the maximum can be set30levelOK,±NGIn the decision level.
    In case5Have in one place1The results of different parts wereNG, the workpiece is determined to beNG.
    ４Measurement of slot width parallelism
    a)pass5In the width of each part｜Maximum value－Minimum value｜Measure parallelism.

    b)The decision can be divided intoOK,NG.

    Yileride focuses on precision parts size pneumatic measurement, as a national high-tech enterprise and private science and technology enterprises in Jiangsu Province, has12Human technology research and development team, research and development personnel have participated in the United States Group, Gree, Mitsubishi, Panasonic and other companies of automatic measuring machine research and development, the company's annual research and development investment200Million, research and development of new products is not less than15PC.

    If you are Billion leride Air cylinderSPCWork station Interested or want to know more details, please click on our online customer service for consultation, or directly call the national unified service hotline 400-682-7787   . We look forward to your call!
