1-1outline

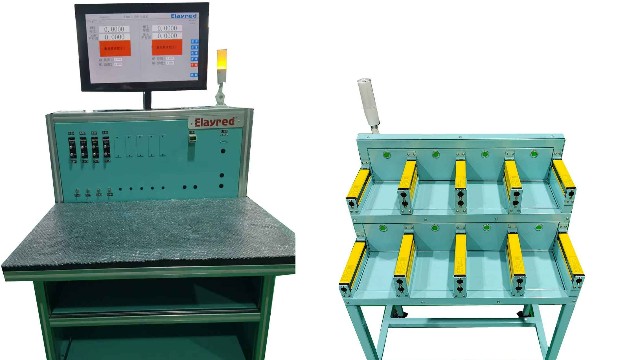

    This is a measuring machine that uses a pneumatic measuring device to measure the inner slide of the compressor, displays the measurement results of the height and thickness of the slide on the control screen, and selects qualified parts according to the measurement results. According to the measured group, the corresponding level of storage, such as placement error, the device automatically alerts.
    1-2specification
    １Determination of slide height
    a)Determination using gas-electric converter2The height of each part.
    b)By determining the maximum value at the set levelOK,±NGIn the decision level.
    If so1If the measured result of each part is outside the tolerance, it is determined that the workpiece isNG.
    ２Determination of the height parallelism of the slide
    a)pass2In the height of each part｜Maximum value－Minimum value｜Measure parallelism.
    b)OK,NGThe decision of...
    ３Measurement of thickness
    a)Determination using gas-electric converter2The thickness of each part.
    b)In the software (thickness series distribution can be arbitrarily set), the maximum can be set by determining the maximum value30levelOK,±NGIn the decision level.
    In case2Have in one place1The results of different parts wereNG, the workpiece is determined to beNG.
    ４Measurement of thickness parallelism
    a)pass2In the thickness of each part｜Maximum value－Minimum value｜Measure parallelism.
    b)The decision can be divided intoOK,NG.
