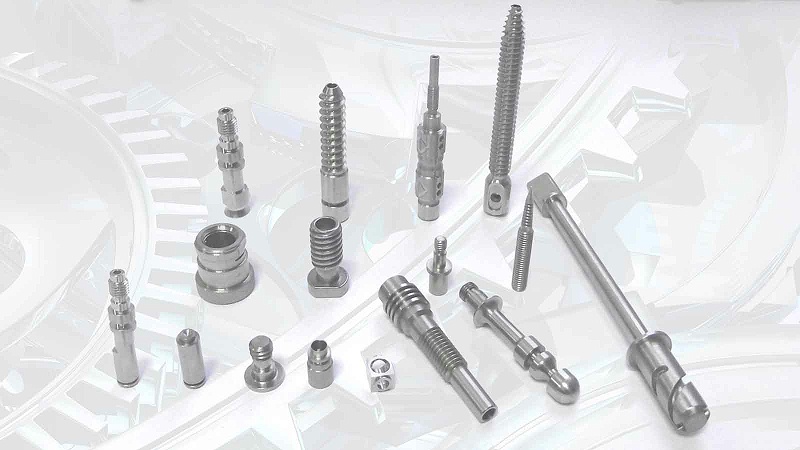

Shaft partsIt is one of the classic parts common in the machine, it is composed of cylindrical surface, table and end, cutting slot, chamfer, keyway, center hole and arc slot, each part has a different purpose, the following is by Yileride for you to briefly introduce it.

    ①Cylindrical surface:Used to support transmission workpieces(Gear, belt wheel)And transfer torque.
    ②Terrace and end surface:Used to determine the axial position of the workpiece mounted on the shaft.
    ③Retracting slot:It can facilitate the cutting of the tool when grinding the outer circle or turning thread, and make the axial position of the workpiece accurate when assembling.
    ④Chamfer:It can prevent the sharp edge of the workpiece from scratching the operator, and also facilitate the loading of the shaft gear, shaft sleeve and other parts.
    ⑤Key way:Install keys to achieve power and movement transmission.
    ⑥Center hole:Positioning criteria for turning.

    ⑦Circular groove:It can improve the strength of the shaft, so that the shaft will not break due to stress concentration when subjected to alternating stress, and in addition, the shaft is not easy to crack during the quenching process.
