E-MASeries single channel measuring instrument byElayredIndependent research and development, full touch control, panel waterproof levelIP55External serial port communication can output measurement data,USBThe interface can be connected externallyUDisk export data.
1~6Channel geometry, shape and position tolerance tester, can be cross-channel operation;

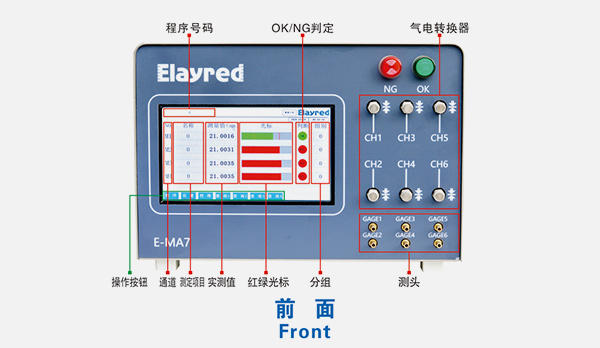

4.3&7Inch full Chinese touch screen display, pearl gray metal car paint shell;
Red and green, left and right light columns, visual reading of relative values or measured values, as well as form and position tolerance values and group levels;

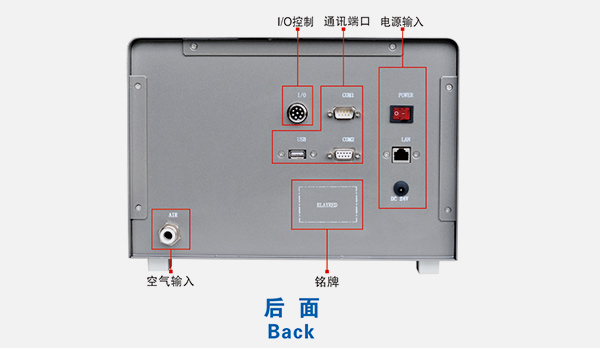

50~100Ten thousand data storage,USB,RS485,LAN, I/OMultiple output;
NGThe alarm was raised;Daily capacity statistics; OK&NGcount;Set mandatory calibration reminders;
withPC/PLC/Synchronous data communication with the Internet of things; A network of multiple instruments; Together withSPCSoftware for on-site quality management, as well as powerful data traceability;

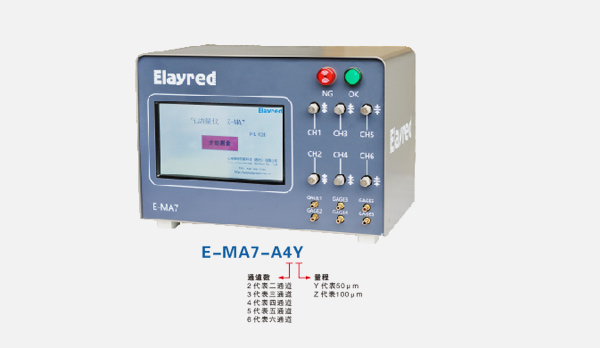

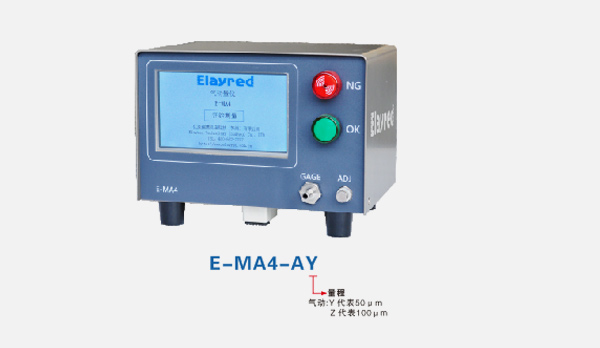

| item | E-MA4-AY | E-MA7-AY |
| Display screen | 4.3" | 7" |
| Number of channels | 1 | 2/3/4/5/6 |
| A/E | EA-1 | EA-1 |
| range | 50μm,100μm | 50μm,100μm |
| precision | 1% | 1% |
| Resolution | 0.1/0.2/0.5/1.0 | 0.1/0.2/0.5/1.0 |
| unit | μm/mm/inch | μm/mm/inch |
| Language | Chinese/English | Chinese/English |
| Number of programs | Standard configuration10 | Standard configuration10, expandable |
| Calibration mode | Knob, button automatic | Knob, button automatic |
| Data storage | Manual operation/Auto | Manual operation/Auto |
| Feature | MAX,MIN,MAX-MIN,( MAX-MIN ) /2 | MAX,MIN,MAX-MIN,( MAX-MIN ) /2 |
| operation | Single channel operation | Cross-channel operation |
| Alarm buzzer | There are | There are |
| group | 10 | There are |
| cursor | Red and green | Red and green |
| Productivity statistics | There are | There are |
| OKThe number | There are | There are |
| NGThe number | There are | There are |
| Calibration count | There are | There are |
| Forced calibration | There are | There are |
| Data export | USB/RS485/LAN | USB/RS485/LAN |
| I/OControls | There are | There are |
| Data query | There are | There are |
| Power source | 220V/24V | 220V/24V |
| Air source | 0.5~0.8MPa | 0.5~0.8MPa |
| Air source input | φ8 | φ10 |
| Air source flow | 60L/min/Single exit | 60L/min/Single exit |
| Working humidity | 10%-90%HR | 10%-90%HR |
| Operating temperature | -20C~50C | -20C~50C |
| volume | 170*120*130mm | 300*185*215 |
| weight | 1.5Kg | 6.75Kg |
