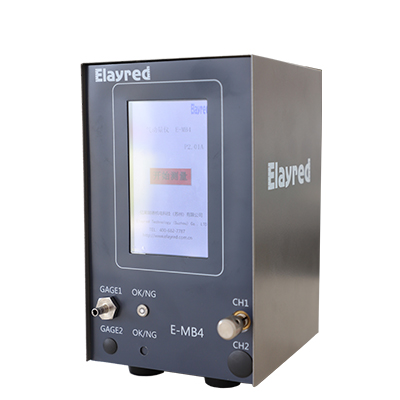

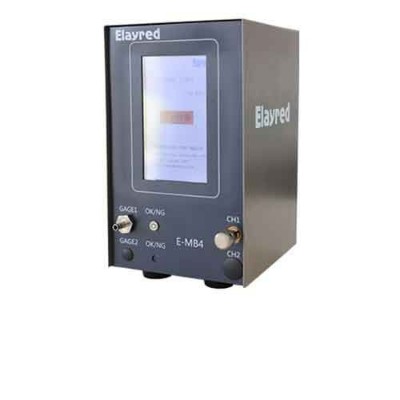

E-MB Series dual channel measuring instrument by Elayred Independent research and development, full touch control, panel waterproof levelIP55External serial port communication can output measurement data,USBThe interface can be connected externallyUDisk export data.
1~6Channel geometry, shape and position tolerance tester, can be cross-channel operation;
4.3&7Inch full Chinese touch screen display, pearl gray metal car paint shell;
Red and green, left and right light columns, visual reading of relative values or measured values, as well as form and position tolerance values and group levels;
50~100Ten thousand data storage,USB,RS485,LAN, I/OMultiple output;
NGThe alarm was raised;Daily capacity statistics; OK&NGcount;Set mandatory calibration reminders;
withPC/PLC/Synchronous data communication with the Internet of things; A network of multiple instruments; Together withSPCSoftware for on-site quality management, as well as powerful data traceability;
| item | E-MB4-A1Y/A2Y |
| Display screen | 4.3" |
| Number of channels | 1-2 |
| A/E | EA-1 |
| range | 50μm,100μm |
| precision | 1% |
| Resolution | 0.1/0.2/0.5/1.0 |
| unit | μm/mm/inch |
| Language | Chinese/English |
| Number of programs | Standard configuration10, expandable |
| Calibration mode | Knob, button automatic |
| Data storage | Manual operation/Auto |
| Feature | MAX,MIN,MAX-MIN,( MAX-MIN ) /2 |
| operation | Single channel operation |
| Alarm buzzer | There are |
| group | There are |
| cursor | Red and green |
| Productivity statistics | There are |
| OKThe number | There are |
| NGThe number | There are |
| Calibration count | There are |
| Forced calibration | There are |
| Data export | USB/RS485/LAN |
| I/OControls | There are |
| Data query | There are |
| Power source | 220V/24V |
| Air source | 0.5~0.8MPa |
| Air source input | φ8 |
| Air source flow | 60L/min/Single exit |
| Working humidity | 10%-90%HR |
| Operating temperature | -20C~50C |
| volume | 120*130*205mm |
| weight | 1.5Kg |
