E-MC5 gas momentum meter

Model:E-MC5;
Measuring range:±25μm,±50μm;
Resolution:0.1/0.2/0.5/1.0;
Total error:≤0.3μm;
Number of channels:Single;
Measuring function:MXMNMNIAN-AMIN2

inquiry

Product details

Product overview Product overview

E-MC5aerometer

E-mc5 gas momentum meter

E-MCSeries single channel measuring instrument byElayredIndependent research and development, full touch control, panel waterproof levelIP55External serial communication can expand other measuring equipment, USBThe interface can be connected externallyUDisk guide Data out.I/OIt can be controlled externally, with online detection of measuring tools, fast and accurate measurement, and promote quality improvement.

Functional characteristics Functional features

appearance

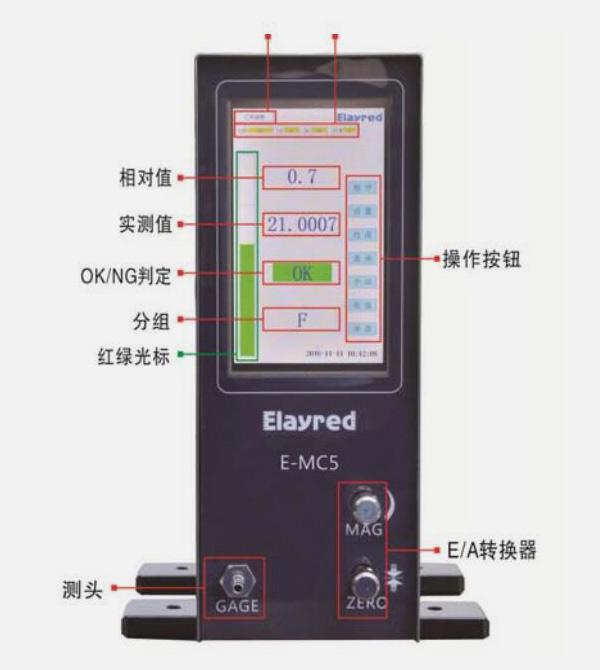

5Inch full Chinese touch screen display, sapphire blue metal car paint shell;
precision

Gas-electric converter with double knob ultra-fine pressure regulation, high precision, good stability and repeatability;
reading

Red and green, up and down light columns, intuitive reading of relative values or measured values, as wellOK/NGAnd group level;
store

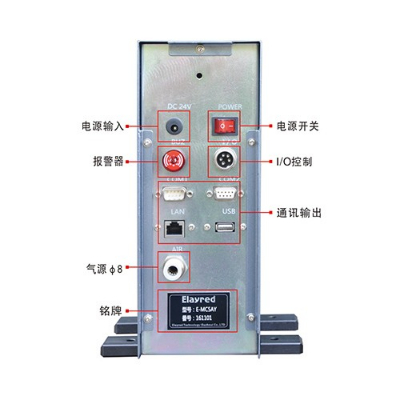

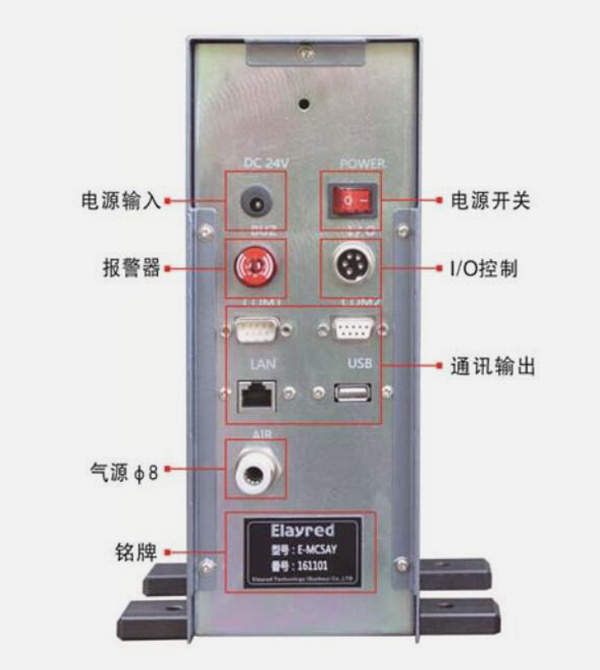

50Ten thousand data storage,USB,RS485,LAN,I/OMultiple output;
warn

NGAlarm warning;Daily capacity statistics; OK&NGcount;Set mandatory calibration reminders;
software

It can edit the grouping, peak value, saving and data operation of the measured values by itself;
communication

withPC/PLC/The Internet of Things synchronizes data communication, and multiple instruments form a network, together withSPCSoftware for on-site quality management, as well as powerful data traceability;

Technical index Technical indicators

Model number	Measuring range	Resolution	Total error	Number of channels	Measuring function	Unit of measurement
E-MC5	±25μm,±50μm	0.1/0.2/0.5/1.0	≤0.3μm	single	MXIXINMAIAMIMAMIN2	μm/mm
Touch screen	Number of programs	Calibration mode	Storage mode	Storage capacity	Communication port	A/E
5"	20	Keystroke automatic	Auto/Manual operation	about50wan	USB/RS485/LAN	EA-2
group	Main power supply	Meter input power	Air source	Operating temperature	dimension	weight
12	100-240V	24V	0.4-0.7Mpa	-20C~50C	24895185mm	3.2Kg
Alarm buzzer	cursor	Productivity statistics	OKThe number	NGThe number	Forced calibration	I/OControls
There are	Red and green	There are	There are	There are	There are	There are
