E-MG12 gas momentum meter

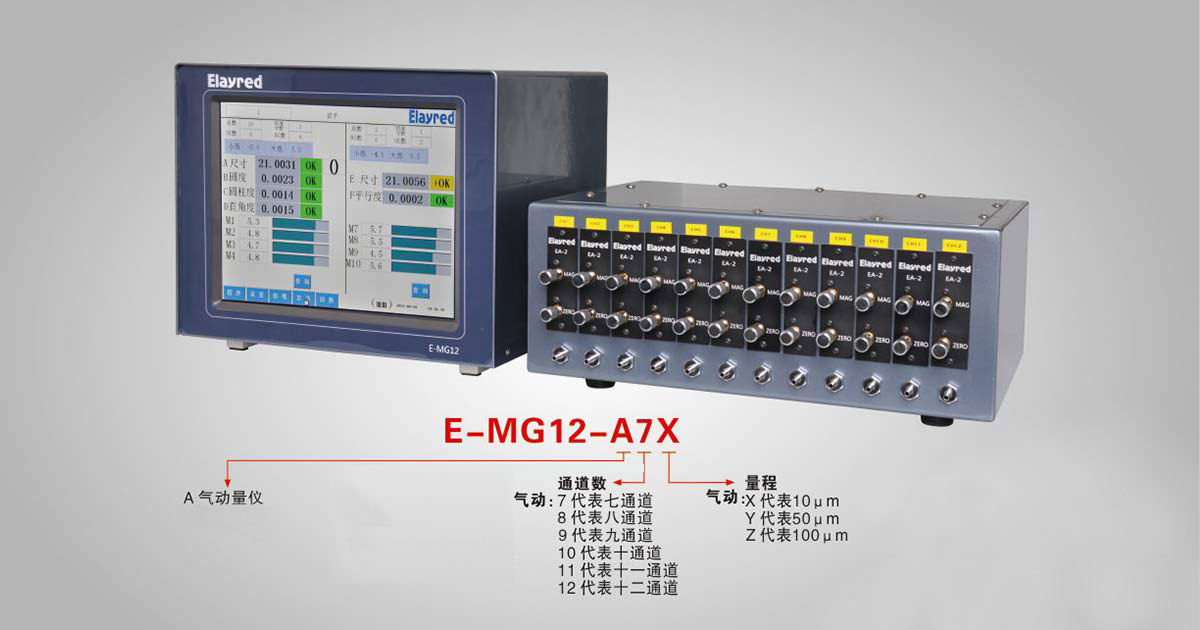

Product Name:E-MG12Gas momentum meter;
Display screen:12Inch;
OKNumber:Yes;
A/E:EA-2;
Range:10μm,50μm,100μm;

inquiry

Product overview Product overview

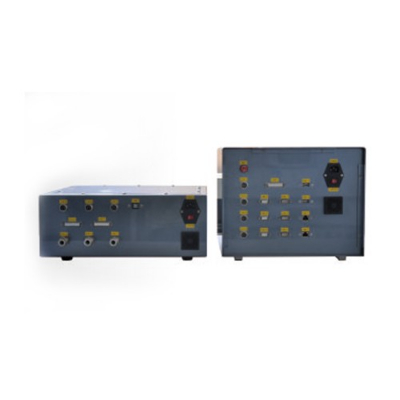

E-MG12 gas momentum meter

Functional characteristics Functional features

passage

pneumatic7~12Channel geometry, shape and position tolerance tester, can be cross-channel operation;
appearance

12Inch full Chinese touch screen display, sapphire blue metal car paint shell;
precision

Gas-electric converter with double knob ultra-fine pressure regulation, good precision, stability and repeatability;
reading

Red and green, left and right light columns, visual reading of relative values or measured values, as well as form and position tolerance values and group levels;
store

500Ten thousand data storage,USB,RS485,L AN,I/OMultiple output;
warn

NGAlarm warning;Daily capacity statistics;OK&NGCount; Set mandatory calibration reminders; Inlet pressure detection;
communication

withPC/PLC/The Internet of Things synchronizes data communication;Multiple instruments form a network;Together withSPCSoftware for on-site quality management, as well as powerful data traceability;
sampling

Based on high speed modularPLCThe data processing system, strong expansion ability, to meet the needs of various automation equipment, machine tool online signal;

Technical index Technical indicators

Display screen	12"	OKThe number	There are
A/E	EA-2	Productivity statistics	There are
range	10μm,50μm,100μm	NGThe number	There are
precision	≤0.3μm	Forced calibration	There are
Resolution	0.1/0.2/0.5/1.0	Data export	USB/RS485/LAN
unit	μm/mm/inch	I/OControls	There are
Language	Chinese/English	Data query	There are
Number of programs	Standard configuration10, expandable	Power source	220V
Calibration mode	Knob, button automatic	Air source	0.5~0.8MPa
Data storage	Manual operation/Auto	Air source input	φ10*3
Feature	MAX,MIN,MAX-MIN,(MAX-MIN )/2	Air source flow	60L/min/Single exit
operation	Cross-channel operation	Working humidity	10%-90%HR
Alarm buzzer	There are	Operating temperature	-20℃-50℃
group	There are	volume	342280255+400* 168*300
cursor	Red and green	weight	23.5Kg
