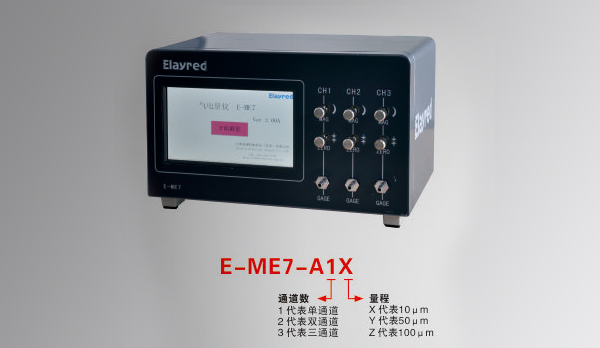

E-ME7Gas gauge byElayredIndependent research and development, full touch control, panel waterproof levelIP55External serial communication can expand other measuring equipment, USBThe interface can be connected externallyUDisk export data.I/OIt can be controlled externally, with online detection of measuring tools, fast and accurate measurement, and promote quality improvement.
2~3Channel geometry, shape and position tolerance tester, can be cross-channel operation;
7Inch full Chinese touch screen display, sapphire blue metal car paint shell;
Gas-electric converter with double knob ultra-fine pressure regulation, good precision, stability and repeatability;
Red and green, left and right light columns, visual reading of relative values or measured values, as well as form and position tolerance values and group levels;
500Ten thousand data storage,USB,RS485,LAN,I/OMultiple output;
NGAlarm warning; Daily capacity statistics;OK&NGCount; Set mandatory calibration reminders; Inlet pressure detection;
withPC/PLC/The Internet of Things synchronizes data communication, and multiple instruments form a network, together withSPCSoftware for on-site quality management, as well as powerful data traceability;
Based on high speed modularPLCThe data processing system, strong expansion ability, to meet the needs of various automation equipment, machine tool online signal;
| item | E-ME7-A |
| Display screen | 7" |
| A/E | EA-2 |
| precision | ≤0.3μm |
| Resolution | 0.1/0.2/0.5/1.0 |
| unit | μm/mm/inch |
| Language | Chinese/English |
| Number of programs | Standard configuration10, expandable |
| Calibration mode | Knob, button automatic |
| Data storage | Manual operation/Auto |
| Feature | MAX,MIN,MAX-MIN,(MAX-MIN )/2 |
| operation | Cross-channel operation |
| Alarm buzzer | There are |
| group | There are |
| cursor | Red and green |
| Productivity statistics | There are |
| OKThe number | There are |
| NGThe number | There are |
| Calibration count | There are |
| Forced calibration | There are |
| Data export | USB/RS485/LAN |
| I/OControls | There are |
| Data query | There are |
| Power source | 220V |
| Air source | 0.5~0.8MPa |
| Air source input | φ8 |
| Air source flow | 60L/min/Single exit |
| Working humidity | 10%-90%HR |
| Operating temperature | -20℃-50℃ |
| volume | 310*200*200 |
| weight | 7.7Kg |

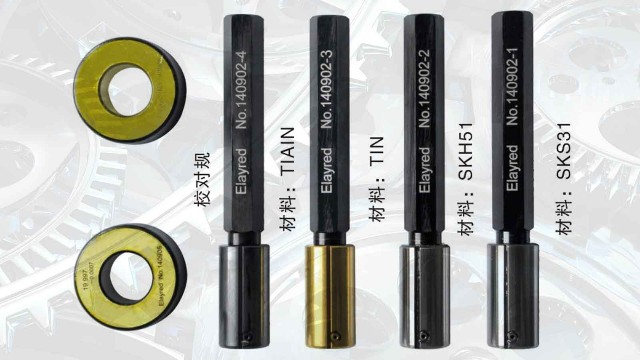

气动测头及校对规是精密测量领域中不可或缺的工具，其准确性和稳定性直接关系到产品质量和生产效率。为确保测量结果的可靠性，对气动测头及校对规进行定期的检定显得尤为重要。检定气动测头时，首先需检查其外观是否完好，有无明显损伤或磨损。接着，使用标准量块对测头进行校准，确保其测量值与标准值一致。在校准过...... 【Detail+】
