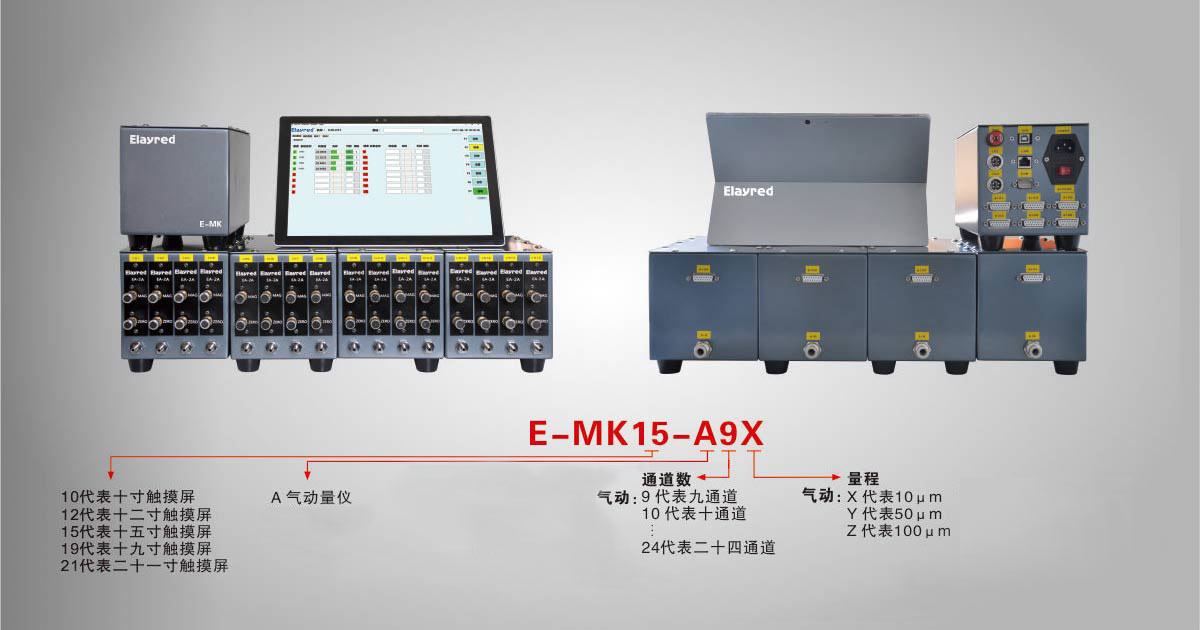

Product Name:E-MK15Gas momentum meter;
Display screen:10~21Inch;
OKNumber:Yes;
A/E:EA-2;
Range:10μm,50μm,100μm;

inquiry

Product overview Product overview

E-mk15 gas electricity meter

Functional characteristics Functional features

passage

pneumatic1~32Channel geometry, shape and position tolerance tester, can be cross-channel operation;
appearance

10~21Inch industrial control machine, sapphire blue metal car paint shell;
precision

Gas-electric converter with double knob ultra-fine pressure regulation, good precision, stability and repeatability;
store

dataSSDSolid state drive storage,USB,RS485,LAN,I/OMultiple output;
communication

withPC/PLC/Internet of Things for data synchronous communication; A network of multiple instruments; Together withSPCSoftware for on-site quality management, as well as powerful data traceability;
sampling

Based onWindowsSystem and data acquisition card data processing system, response speed, can be customized programming output, measurement data storage in the database, convenient statistical analysis;

Technical index Technical indicators

Display screen	10~21"	Productivity statistics	There are
A/E	EA-2	OKThe number	There are
range	10μm,50μm,100μm	NGThe number	There are
precision	≤0.3μ m	Forced calibration	There are
Resolution	0.1/0.2/0.5/1.0	Data export	USB/RS485/LAN
unit	μ m/mm/inch	I/OControls	There are
Language	Chinese/English	Data query	There are
Number of programs	Standard configuration30, expandable	Power source	220V
Calibration mode	Knob, button automatic	Air source	0.5~0.8MPa
Data storage	Manual operation/Auto	Air source input	φ8
Feature	MAX,MIN,MAX-MIN,(MAX-MIN )/2	Air source flow	60L/min/Single exit
operation	Cross-channel operation, programmable output	Working humidity	10%-90%HR
Alarm buzzer	There are	Operating temperature	-20℃-50℃
group	There are	volume	522303270(Display free)
cursor	Red and green	weight	16.8Kg(Display free)
