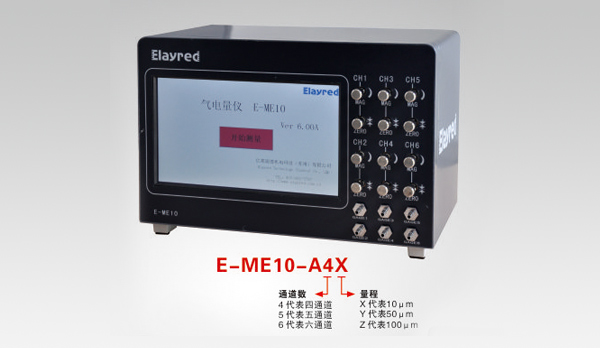

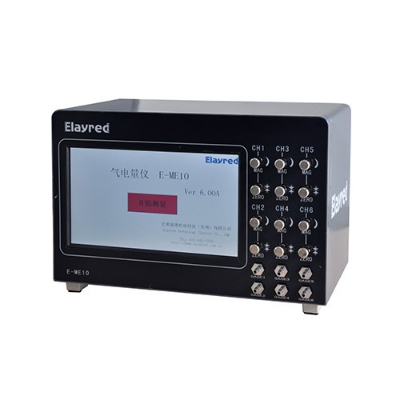

E-ME10Gas gauge byElayredIndependent research and development, full touch control, panel waterproof levelIP55External serial communication can expand other measuring equipment, USBThe interface can be connected externallyUDisk guide Data out.I/OIt can be controlled externally, with online detection of measuring tools, fast and accurate measurement, and promote quality improvement.
4~6Channel geometry, shape and position tolerance tester, can be cross-channel operation;
10Inch full Chinese touch screen display, sapphire blue metal car paint shell;
Gas-electric converter with double knob ultra-fine voltage regulation, excellent ultra-precision, stability and repeatability;
Red and green, left and right light columns, visual reading of relative values or measured values, as well as form and position tolerance values and group levels;

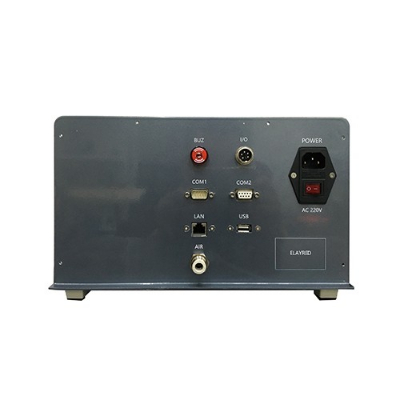

50Ten thousand data storage,USB,RS485. LAN,I/OMultiple output;
NGAlarm warning; Daily capacity statistics;OK & NGCount; Set mandatory calibration reminders;
withPC/PLC/Internet of Things for data synchronous communication; A network of multiple instruments; Together withSPCSoftware for on-site quality management, as well as powerful data traceability;
| item | E-ME10-A |
| Display screen | 10" |
| A/E | EA-2 |
| precision | ≤0.3μm |
| Resolution | 0.1/0.2/0.5/1.0 |
| unit | μm/mm/inch |
| Language | Chinese/English |
| Number of programs | Standard configuration10, expandable |
| Calibration mode | Knob, button automatic |
| Data storage | Manual operation/Auto |
| Feature | MAX,MIN,MAX-MIN,( MAX-MIN) /2 |
| operation | Cross-channel operation |
| Alarm buzzer | There are |
| group | There are |
| cursor | Red and green |
| Productivity statistics | There are |
| OKThe number | There are |
| NGThe number | There are |
| Accurate count | There are |
| Forced comparability | There are |
| Data export | USB/RS485/LAN |
| I/OControls | There are |
| Data query | There are |
| Power source | 220V |
| Air source | 0.5-0.8MPa |
| Air source input | φ10 |
| Air source flow | 60L/min/Single exit |
| Working humidity | 10%-90%HR |
| Operating temperature | -20℃~50℃ |
| volume | 350*240*200 |
| weight | 8.0Kg |
